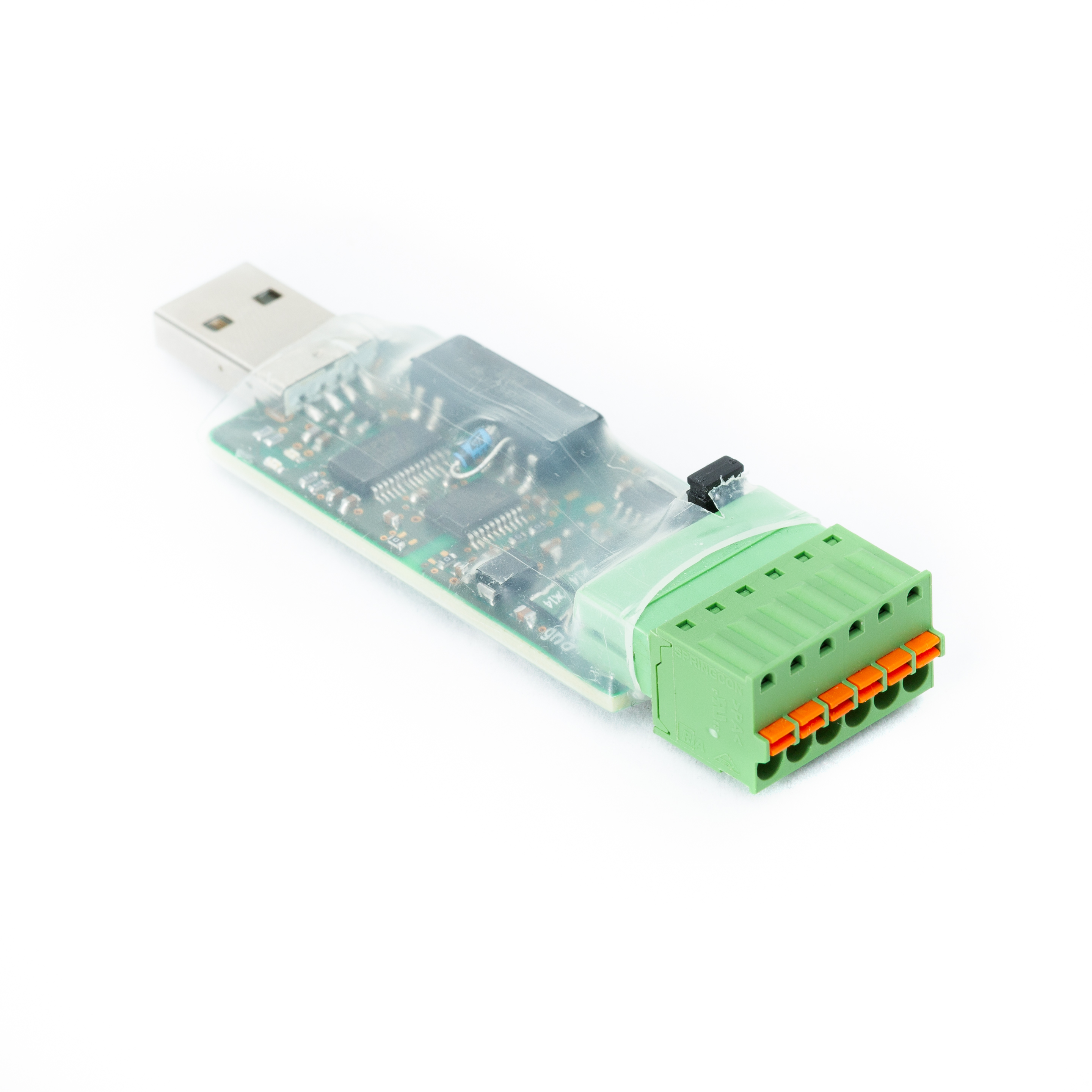

USB-RS485 device is a device that provides an asynchronous serial data channel in the form of a virtual COM port. USB-RS485 device is an invaluable tool for developers during both development phase and in later debugging/configuration period.
The device features FTDI converter IC, which has royalty-free support across wide range of operating systems. Design of the USB-RS485 device has taken into account the most common slip-ups during development, such as interchanging data signals, to reduce the risk of permanent damage to the device from these events.
The device features FTDI converter IC, which has royalty-free support across wide range of operating systems. Design of the USB-RS485 device has taken into account the most common slip-ups during development, such as interchanging data signals, to reduce the risk of permanent damage to the device from these events.
Key features:
- Galvanically isolated
- Data rates up to 500 kbaud
- Switchable 120 Ohm termination
- Full-duplex communication
- Traffic indication LEDs
- USB port-powered
- Isolated internal power source 3.3 V/150 mA
- FTDI standard drivers
